Servo Driven Waterproof & Oil‑Proof PE Apron Automatic Production Packaging Machine Line

Name: Servo Driven Waterproof amp OilProof PE Apron Automatic Production Packaging Machine Line
Brand: Sayok
Price: 1 USD

Payment Terms : T/T

Applicable industries : all kinds of pe apron making and packing

Functions : Unwinding, Cutting, Folding, Bag Forming, Packing

Supply Ability : 25 set /month

Product Name : All in one apron production packing line

Model Number : SN-900

Feature : Easy to operate and maintain

MOQ : 1 set

Delivery Time : 40-45 working days

Transmission Mode : Servo motor, guide rail

Price : EXW US$42600-47300/set

Controller : Servo Motor + HMI

Advantages : Making, folding and packing all in one machine

Packaging Details : Exported wooden case

Brand Name : Sayok

Certification : CE

Place of Origin : China

Contact Now

Servo Driven Waterproof & Oil‑Proof PE Apron Automatic Production Packaging Machine Line

This fully automatic all-in-one machine integrates the whole process of disposable PE apron production and packaging. It realizes automatic film unwinding, sealing, cutting, folding, counting and bagging in one continuous operation. Designed for mass production of waterproof and oil-proof disposable PE aprons, it greatly saves labor cost and improves production efficiency.

The automatic disposable PE apron making and packaging all-in-one machine is a professional integrated production equipment for disposable plastic apron manufacturing. It adopts servo precision control system and completes all core procedures automatically, including raw PE film unwinding, tension adjustment, edge sealing, fixed-length cutting, apron shaping, precise folding, counting and finished product packaging.

This machine supports production of various styles of PE aprons, such as hanging neck aprons, vest-style aprons and back tie aprons. It features stable operation, accurate cutting size, neat folding effect and adjustable production speed. The whole production process requires minimal manual intervention, effectively solving the problems of low efficiency, uneven product quality and high labor cost in traditional manual production.

Suitable for mass manufacturing of disposable PE & CPE aprons widely used in catering, food processing, beauty salon, household cleaning and industrial protection industries. It is an ideal automated production solution for disposable protective supplies manufacturers.

Specifications:

Machine Model	SN-900A
Raw Material	width 860~1200mm
Weight of the machine	Mainframe: about 500KG, automatic loading rack: about 300KG,packing machine 400KG
Operating Environmental Condition	Dry and clean factory
Power supply requirements	Single-phase, AC 220V, 50/60 HZ The power line interface is a 16A triangle plug.
Machine power	Maximum power 7.5 KW
Air source requirements	Compressed air: 0.6-0.8MPa Air consumption: 65L/min 3 Inter pipe: 8 centimeters in diameter
Folding speed	Folding speed about: 20-40PCS/min
Folded dimensions	Depends on actual product
Transmission mode	Servo motor, guide rail
Control system:	human-computer interface setting operation, PLC programming control
Operator	1 Operator

Machine Details:

1. Making folding and packing all in one machine It can realize the one-step process of material unwinding, folding, shaping, sealing and cutting, finish products are individual 1 pc pack with central bag.
2.Conpact Design Unwinding Raw Material Holder Large raw material helder design, compatible for different film rolls, with tension adjustment, the film rolls can unwind smoothly and fast to ensure the whole machine's high efficient operating.
3. Working Process Raw material unwinding - mold cutting - folding - bag forming - sealing - cutting - packed finished products
4.Multi-functional customized mechanical devices enjoy quality service
6. Automatic making folding and packing machine for disposable apron individual pack.

Packaging And Shipping

It is carefully packaged to ensure it arrives safely at your location. The machine is securely wrapped in protective materials and placed inside a sturdy wooden crate to prevent any damage during transit. All components are individually packed and labeled for easy assembly and installation.

The packaging is designed to withstand long-distance transportation and handling, ensuring that the machine reaches you in perfect working condition.

We also provide installation guides, assist you in setting up the machine quickly and efficiently.

Servo Driven Waterproof & Oil‑Proof PE Apron Automatic Production Packaging Machine Line

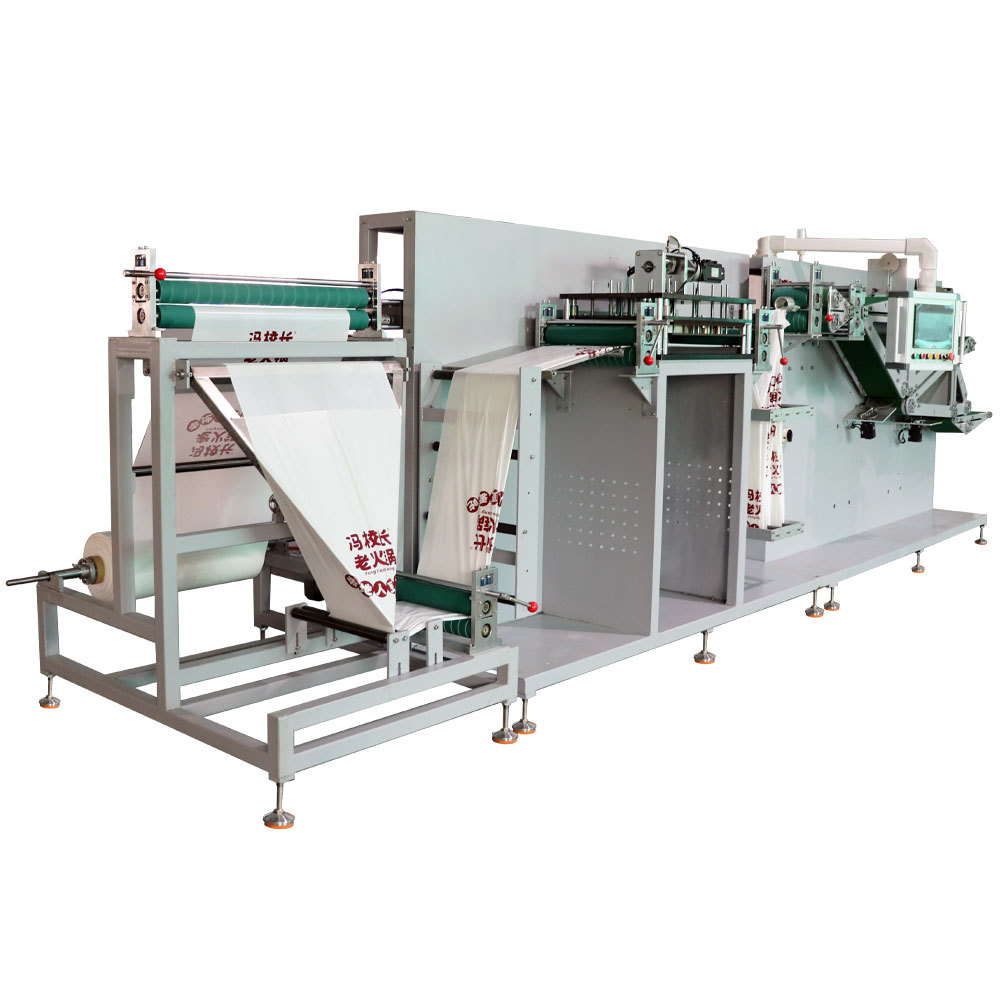

Servo Driven Waterproof & Oil‑Proof PE Apron Automatic Production Packaging Machine Line Images
